Cn Molecular Orbital Diagram

Now in the lewis theory picture this is. Followed again by two sigma orbitals.

Inorganic Chemistry How Can One Tell From The Mo Diagram Of The

Filling these according to hunds rule all the orbitals are full up to the pi bonding one which has two electrons in it.

Cn molecular orbital diagram. Here is the mo for cn just take away a single electron from the mo since cn is neutral. In neutral cn there are nine valence electrons five from n four from c. Note that the 1s orbital is not shown in this problem.

Molecular orbital resembles. More detail was added to this answer in response to input and questions from students in the class of 2008. A molecular orbital diagram or mo diagram is a qualitative descriptive tool explaining chemical bonding in molecules in terms of molecular orbital theory in general and the linear combination of atomic orbitals lcao method in particular.

If you have suggestions or contributions please e mail me. Ask question 6. First add up the electrons in the bonding and antibonding orbitals.

1 bonding 1 antibonding 3 orbitals 1 bonding 1 non bonding 1 antibonding details depend on relative energies always break mo diagrams down into components based on symmetry. Vijayta gupta is right the n atom is lower in energy. Now fill the mo diagram and find bond orders.

Shields shows you how to draw the mo correlation diagram for cyanide cn calculate the mo bond order and write the mo electron configuration with an example problem. Complete this molecular orbital diagram for cn then determine the bond order. The connection between a molecular orbital theory mo point of view and a lewis picture lt is tenuous at best.

Take it one step at a time and you will have a complete mo diagram before you know it. To add arrows to the mo diagram click on the blue boxes. 4 coordinate complexes summary typical exam questions.

Cyanide ion non bondinglone pair. Right you have been asked to draw the mo diagram for cn a heteronuclear diatomic. All five orbitals make up the bonding of the molecules and determine also its reactivity.

What Are The Molecular Orbital Configurations For N 2 N 2 2

Energy E Orb Of Molecular Orbitals Of Phenyldiazonium Cation As A

Problem Set 2 2010 Problem Set 2 Chem 1810 2010 1 Sketch Molecular

Schematic Molecular Orbital Diagrams For High Spin 6 A 1g Fe 3

Fecn6 4 Molecular Orbital Diagram Mo Inspirational Valance Bond

11 5 Molecular Orbital Theory Chemistry Libretexts

Solved Complete This Molecular Orbital Diagram For Cn The

Qualitative Valence Molecular Orbital Mo Diagram Of An Octahedral

What Is The Ground State Molecular Orbital Configuration Of Cn And

P Molecular Orbitals Of Conjugated Butadiene

Cn Molecular Orbital Diagram Inspirational Molecular Structures Of

Cn Molecular Orbital Diagram Elegant What Is The Bond Order Of

Molecular Orbital Diagrams For Ru 3 A C H T U N G T R E N N U N G

Chapter 5 Molecular Orbitals

Interactions Between Cyclobuta Ne Molecular Orbitals And Metal D

Mo Diagram Of Cn

D Orbitals Mo Diagrams 1 Artatec Automobile De

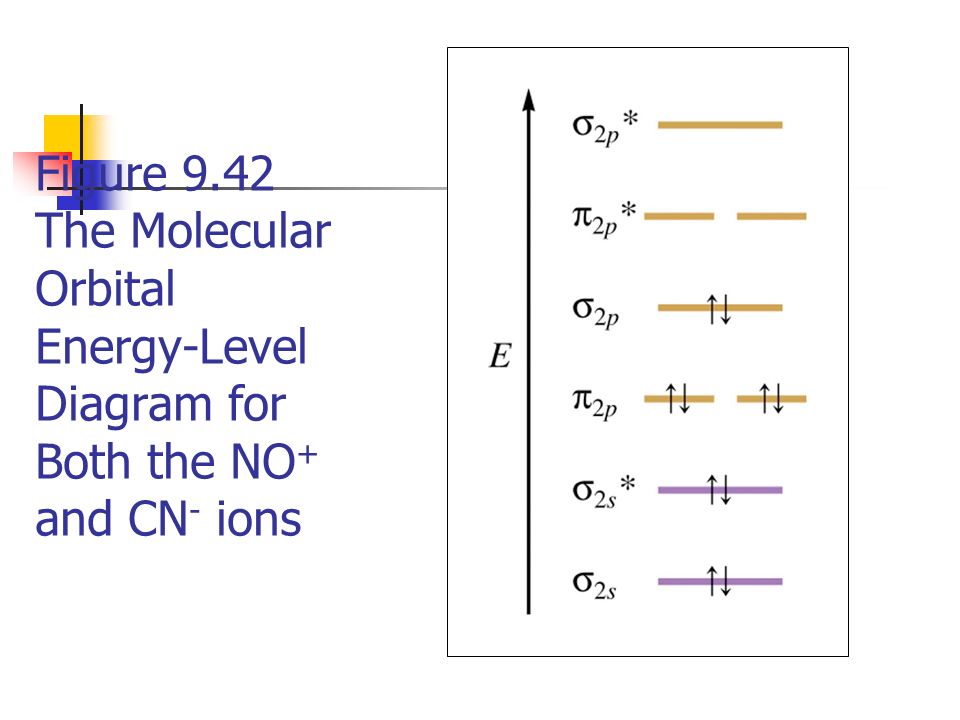

Introduction To Molecular Orbital Theory Ppt Download
