What Does An Electron Dot Diagram Show

A lewis electron dot diagrama representation of the valence electrons of an atom that uses dots around the symbol of the element. The lewis dot diagram for carbon dioxide also shows that two pairs of electrons are shared.

How Many Valence Electrons Are In A Neutral Lithium Atom 4 Diagram

More complicated versions can be used to show the bond between different atoms in a molecule.

What does an electron dot diagram show. In other words if every element in group 1a has 1 valence electron then every lewis electron dot diagram would have one single dot. Two lewis structures or electron dot diagrams for the nitrite ion. These diagrams are used as a shorthand notation to show the number of valence electrons in an atom.

Proposes that all metal atoms in a metallic solid contribute their valence electrons to form a sea of electrons and can explain properties of metallic solids such as malleability conduction and ductility. An electron dot diagram is a method of writing the chemical symbol of an element by surrounding it with dots to indicate the number of valence electrons. The letter c is the kernel and as we said this represents the atom and its inner shell electrons the 1s 2 electrons.

An attractive force that holds together the atoms ions or groups of atoms in a molecule or compound. Show students that in the energy level model for carbon dioxide two pairs of electrons are shared with each oxygen atom. Jump to navigation jump to search.

Lewis structures or electron dot structures depict the bonds between atoms of a molecule and any unbonded electron pairs. The lewis dot notation consists of the kernel the nucleus and all of its inner electrons that is represented by the elemental symbol and the valence electrons represented by dots. Lewis structures also known as lewis dot diagrams lewis dot formulas lewis dot structures electron dot structures or lewis electron dot structures leds are diagrams that show the bonding between atoms of a molecule and the lone pairs of electrons that may exist in the molecule.

Chemistry chemical laws basics. The remaining four valence electrons are placed around the kernel according to specific rules. But this is uncommon dots are drawn next to atoms to show unbonded electrons.

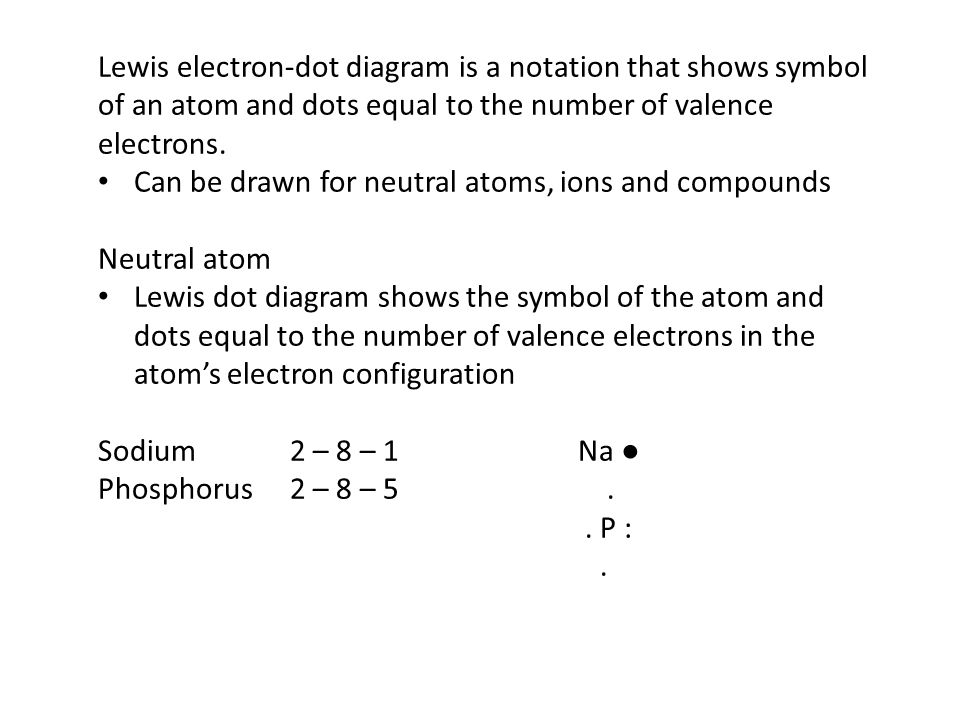

Or electron dot diagram or a lewis diagram or a lewis structure is a representation of the valence electrons of an atom that uses dots around the symbol of the element. The remaining electrons are shown paired up around each oxygen atom. Write the symbol of the atom you are drawing the electron dot diagram for in the middle of your paper.

Check out the lewis dot structure of carbon below. A pair of dots is. Since the lewis electron dot diagrams are based on the number of valence electrons it would hold true that the elements in the same group would have the same electron dot diagram.

Valence electrons are found in an atoms outer shell and are the ones involved in chemical reactions. Introduce students to lewis dot structures.
