A schematic representation of an ideal rankine cycle b t s diagram of an ideal rankine cycle. This system is termed the rankine cycle and is the model for the simple steam power plant.

Rankine Cycle

This cycle is shown on p v t v h s diagram in the above figures.

Pv diagram of rankine cycle. A b s 2 1 1 4 4 4 5 2 3 3 3 t. Turbine condenser boiler 2 1 4 pump. Consider the idealized four steady state process cycle in which state 1 is saturated liquid and state 3 is either saturated vapor or superheated vapor.

The working fluid at the inlet repeatedly undergoes change of phase and in successive operations. A schematic of the components of a rankine cycle is shown in figure 811. On the diagram shown the fluid at 2 is mixed with the fluid at 4.

Further addition of energy causes evaporation of the liquid until it is fully converted to saturated steam 3. Rankine cycle is the idealized cycle for steam power plants. The cycle is shown on and coordinates in figure 812.

High pressure liquid enters the boiler from the feed pump 1 and is heated to the saturation temperature 2. S imple rankine cycle is an ideal vapour cycle. It is convenient to show the states and processes on a ts diagram as given in figure 1.

Ccgt plants in which the thermodynamic cycle of consists of two power plant cycles eg. Simple rankine cycle processes with h s diagram. The processes in the rankine cycle are as follows.

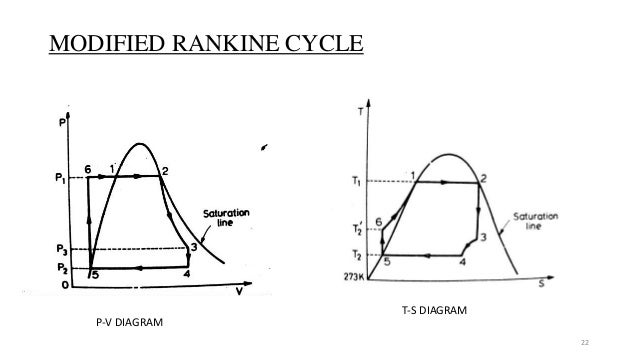

Cold liquid at initial temperature is pressurized reversibly to a high pressure by a pump. The brayton cycle is often plotted on a pressure volume diagram pv diagram and on a temperature entropy diagram ts diagram. The rankine cycle is often plotted on a pressure volume diagram pv diagram and on a temperature entropy diagram ts diagram.

Brayton cycle pv ts diagram. The regenerative rankine cycle is so named because after emerging from the condenser possibly as a subcooled liquid the working fluid is heated by steam tapped from the hot portion of the cycle. The rankine cycle operates in the following steps.

In this process the volume changes slightly. Rankine cycle pv ts diagram. Energy added in steam generator q1 h3 h2.

Work done on pump per kg of water wp h2 h1. It plays a major role in steam power plants. It consists of following processes.

The brayton cycle and the rankine cycle can achieve a thermal efficiency of around 55. This cycle is mainly based on the conversion of input heat energy into output power using turbine. When plotted on a pressure volume diagram the isobaric processes follow the isobaric lines for the gas the horizontal lines adiabatic processes move between these horizontal lines.

Application of the first law of thermodynamics to the control volume pump steam generator turbine and condenser gives. 1 2 3 isobaric heat transfer. Rankine vapour power cycle.
