Molecular Orbital Diagram For N2
The mo picture of homonuclear diatomic molecules depends on the amount of sp mixing. On the right the total valence electrons 4 from c 6 from o have been added to the orbitals.
Molecular Orbitals In Nitrogen
Each n has the configuration 1s2 2s22p3 the mo diagram would show.
Molecular orbital diagram for n2. Then just fill the. Mos of homonuclear diatomic molecules. This is the reasoning for the rearrangement from a more familiar diagram.
This also causes a large jump in energy in the 2p σ orbital. Since the s h h orbital shows a decrease in bonding between the two nuclei. The size of the effect depends on the 2s 2p energy difference.

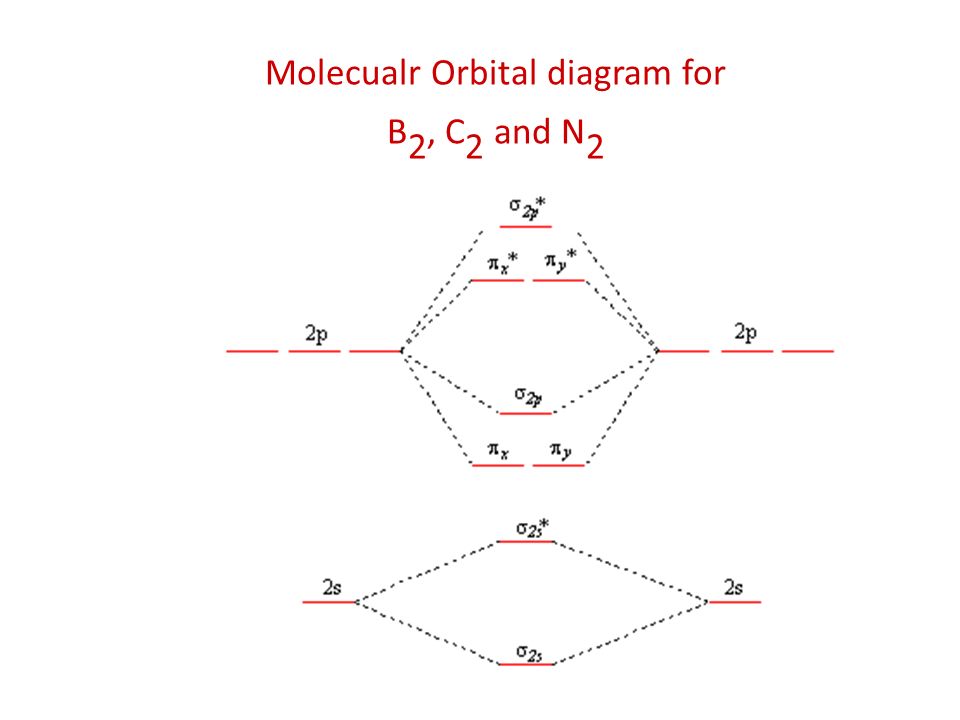

The other is for after nitrogen starting at oxygen. One is for the elements up to nitrogen. By drawing molecular orbital diagrams for b2 c2 n2 o2 and f2 predict which of these homonuclear diatomic molecules are magnetic.
By drawing molecular orbital diagrams for and predict which of these homonuclear diatomic molecules are magnetic. There are two mo diagrams you need to memorize for diatoms n2 o2 ne2 etc. 2 e in the sigma 2s bonding orbital lowest energy mo 2 e in the sigma 2s anti bonding orbital 4 e in the two pi 2p bonding orbitals 2 e in the sigma 2p bonding orbital 1 e in the pi 2p anti.
N21 contains 15 electrons. With nitrogen we see the two molecular orbitals mixing and the energy repulsion. Molecular orbital diagrams of diatomic molecules.
Small zeff small energy difference large sp mixing large zeff large energy difference small sp mixing order changes. On the left you can see all of the orbitals. Notice how the σ from the 2p behaves more non bonding like due to mixing same with the 2s σ.
The molecular orbital diagram of carbon monoxide co is show below. Indicate if it is diamagnetic or paramagnetic. Draw the molecular orbital diagram for n2 ion and calculate the bond order.
The other molecular orbital produced s h h shows a decrease in electron density between the nuclei reaching a value of zero at the midpoint between the nuclei where there is a nodal plane.
