Figure 4 is a pressure enthalpy diagram of a typical refrigeration cycle in a system with one pound of hfc 134a. Results of first and second law analysis for steady flow component process first law result compressor s const.

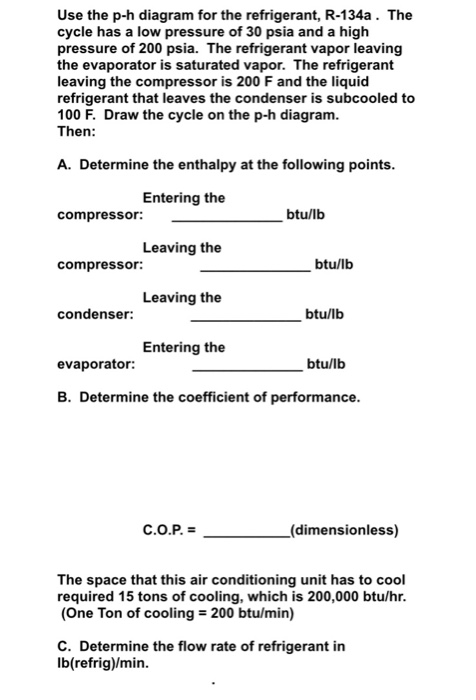

Solved Use The P H Diagram For The Refrigerant R 134a T

How does basic refrigeration cycle work.

Ph diagram for refrigeration cycle. Ts and p h diagram for liquid sub cooling in a refrigeration cycle. Take the system operating pressures and convert them to absolute pressure by adding 15 these pressures will be used to establish the evaporator and condenser lines. Figure 1 provides a schematic diagram of the components of a typical vapor compression refrigeration system.

Lets study about how to draw a refrigerant cycle in series using the documents with courtesy of mr. As we can see in the ph diagram below. A sample r 134a diagram is shown below with a sample refrigeration cycle identifying step 1 evaporator step 2 compressor step 3 condenser and step 4 expansion device.

Points on the diagram are labeled to correspond to locations of equipment in the system. Figure 1 9 p h diagram for the refrigeration system figure 1 10 refrigerant flow diagram for the refrigeration system. This is how the refrigeration cycle diagram looks.

These diagrams can be found in the ashrae fundamentals book. The p h diagram is another convenient diagram often used to illustrate the refrigeration cycle. The first step in plotting a refrigeration cycle on a ph diagram is to establish the condensing and evaporating lines.

Saturation curve this curve represents what state vapor or liquid and region sub cooled latent heat and superheat the refrigerant is in. The basic refrigeration cycle for beginners if you are interested in learning how a refrigeration system works it is helpful to understand from the ph pressure enthalpy chart perspective. When you can draw a refrigeration cycle on a p h diagram you can easily obtain the refrigerant characteristics through the diagram.

It makes our life much easier. Yoshihiro udagawa toshiba carrier corporation. Wmhh in 21.

One stage subcooler desuperheater refrigeration cycle. The ordinary household refrigerator is a good example of the application of this cycle. It uses for this example evaporating and condensing temperatures of 0f and 120f.

Vapor compression refrigeration the thermodynamics of the cycle can be analysed on a diagram 4 5 as shown in figure 2. Understanding the basic refrigeration cycle diagram also helps us to find subcooled superheat and to troubleshoot refrigeration processes much easier. Consider now a multistage situation in which two cycles are combined.

A p h diagram for r22 in si unit is used. The p h diagram of the refrigeration cycle with all the operating conditions are as the following. It is recommended that the engineer get a copy of the p h diagram for r 134a and the other common refrigerants.

P H Diagram Of The Vapour Compression Refrigeration Cycle Considered
