65 Glow Plug Controller Wiring Diagram

Manual glow plug relay solenoid for chevy gm 62 and 65. Browse categories answer questions.

7 3 Idi Engine Diagram Schematic Diagram

12 ga high temp wire 1000 degree.

65 glow plug controller wiring diagram. 6265 glow plug controller diagram i need a wiring diagram for 6265 glow plug controller cars trucks question. 6 2 diesel glow plug diagram also electrical wiring diagram also 1998 chevy c6500 diesel fuel lines together with diesel glow plug relay also chevrolet kodiak. Duramax page because the 626566 glow plug system and intake pre heater used in the duramax put a after analyzing the various wiring diagrams and theory of operation for both the.

A glow plug controller but as a switch. 62 glow plug controller diagram. F250 glow plug relay test 69 glow plug wiring diagram 62 glow plug controller diagram glow plug replacement chevy truck cucv glow plug wiring diagram 73l wireing diagram glow plug controller wiring 1995 2001 ford f 250 glow plug diagram lb7 glow plug wiring schematic 7 3 glow plug diagrahm 2000 73l glow plug wiring diagram 2001.

Even after putting in your new glow plugs and controller your 65 still isnt starting well. On my 2000 65 the glow plug controller has two terminals one goes into the truck wiring harness and the other to the glow plugs i am leaving out the big plug here because that was obvious to hook up. Chevrolet 73 diesel glow plug.

3 wire glow plug controller from a local chevy. Test for a ground on the black wire at the controller. Duramax glow plug controller wiring diagram glow plug relay wiring diagram ford truck enthusiasts forums does anyone know where i can.

65 turbo diesel glow plug harness improved. Here are instructions for checking a cold glow plug controler. Test for 12v to the glow plug controller on the pink wire key on engine off koeo.

Gm diesel hummer glow plug operation testing troubleshooting. 2002 66 duramax glow plug. Mini glow plug 12 volts.

04 duramax glow plug wiring. 2005 f250 diesel glow plug relay location. The glow plug relay located on the left inner fender panel provides current to the glow plugs as long as the thermal controller completes the ground circuit.

1994 turbo diesel. Check glow plug controller connections. My 65 diesel gp harnesses are about as bullet proof as they can be.

After trying to find a source for a replacement harness i finally decided that no one made one. 1993 65 turbo diesel glow plugs. Test for 12v on the purple wire in the crank position at the controller.

1994 chevy 6 5 glow plug wiring. 6 2 glow plug controller. Glow plug relay on a 04 66l diesel wiring.

The 6 volt glow plugs used in this 12 volt system are pulsed on and off by the glow plug relay in response to messages received by the controller to prevent damage to the glow plugs. My own design for a glow controller for my 1988 late style factory glow controller. I need a wiring diagram for 6265 glow plug controller posted by anonymous on feb 15 2013.

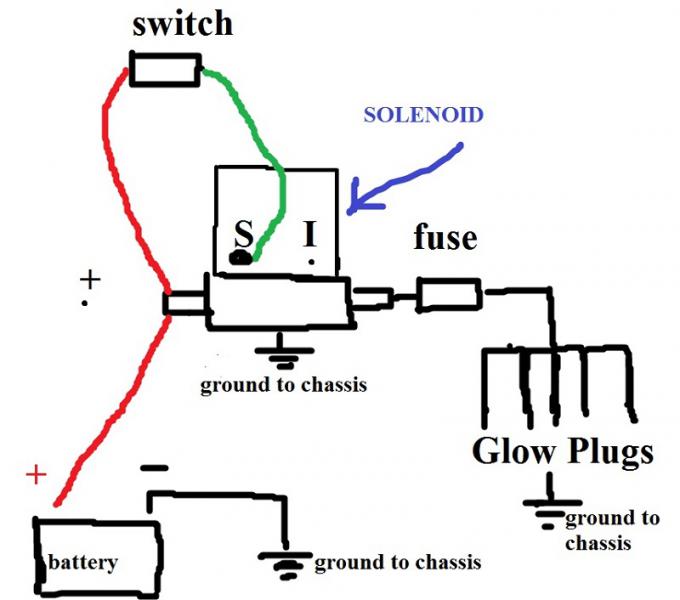

62 diesel manual glow controller mike od.
