How To Use Lock Washers Diagram
Lock washers are installed by putting a bolt or screw through the center of the washer so that the washer is beneath the bolt or screw head or between the nut and the surface being fastened. Nuts are threaded onto the bolt to tighten the connection and.
3 Ways To Use Lock Washers Wikihow
Internal teeth or external.
How to use lock washers diagram. Vibration proof locking washers made of other alloys are available as well. So are wedge lock washers for left handed threads. Lock washers are used to keep screws and bolts from loosening especially as a result of vibration or changes in temperature.
Im using some star lock washers to keep or at least resist a bolt from backing out. The lock washer grips into the surface below the screw or bolt head helping to prevent the threads from loosening over time. There are no set in stone standards for when to use lock washers or what type of lock washer to use in every situation.
Washers are used to strengthen the connection by distributing the force that is being applied by the bolt over a broader area. Are they for differant applications. Use tooth lock washers for extra force.
In other words the bolt goes straight into the hole and doesnt poke out the other end so no nut is used. Additional sizes up to m130 are available upon request. Use a split lock on a small low intensity job since bigger loads will flatten the washer and make it useless.
How to assemble washers bolts nuts. With their jagged edges tooth lock washers hold the nut or threaded fastener in place with a significant amount of force. Lock washers for example help prevent accidental loosening of the bolt.
Place the lock washer between the nut and the work surface if using a nut and bolt configuration or between the fastener head and the work surface if using a tapped hole configuration. I have both internal teeth washers and external teeth washers. Specialty washers are also available.
However general installation guidelines for lock washers will help you to choose what type of lock. Why do both exist.
Hardware Installation For Tooth Washer Eptac
Bearing Accessories Type Self Locking Locknut Nylon Lock Washer
Fastenerdata Metric Lock Washer For Lock Nuts Din981 Steel Din5406
10 Tricks Engineers Need To Know About Fasteners Engineerdog

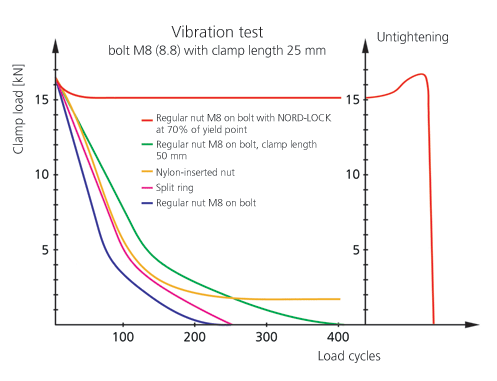

Securing Bolted Joints Under High Vibration Fastener Fixing

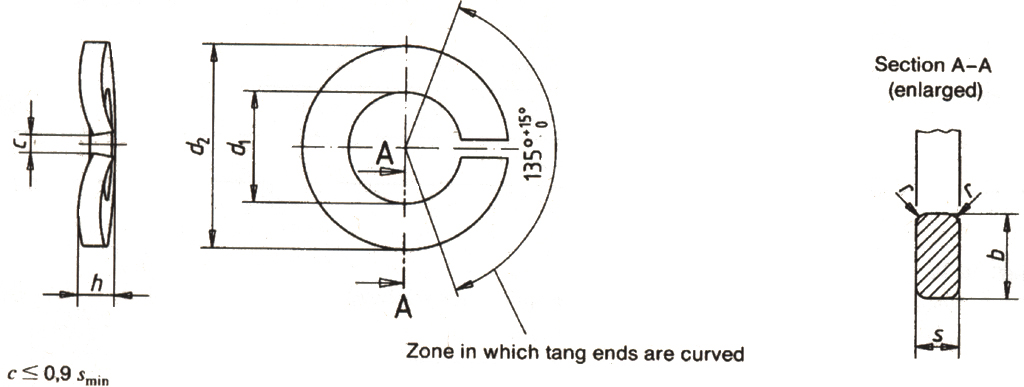

Split Lock Washers With Tang Ends Type A And Square Ends Type B
