What is a free body diagram.

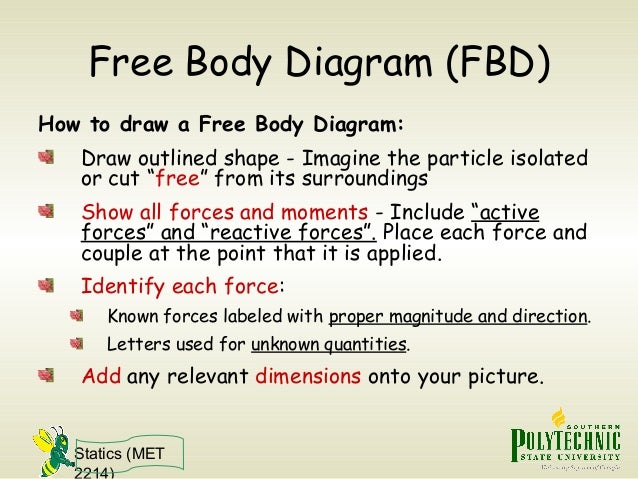

Draw a free body diagram showing forces on the sprinter and the surface. The free body diagram of figure 63a the force resulting from normal contact at a is represented by f. A diagram showing all the forces acting on an objects keeps track of many forces with different directions contains only a single object all connections or supports are taken away and replaced by the force exerted on the object includes every force acting on an object including weight. Each force arrow in the diagram is labeled to indicate the exact type of force.

Draw a free body diagram showing forces on the sprinter and the surface. It is generally customary in a free body diagram to represent the object by a box and to draw the force arrow from the center of the box outward in the direction that the force is acting. The forces acting on the truck are the force due to gravity 80 000 n down ward the force exerted by the road 80 000 n upward the force exerted by the cable 20 000 n to the left and the force causing the truck to move forward 26 400 n to the right.

At point b cable. For example your shoe on the floor. The line of action of the force is along the cable.

Convert the free body diagram into a more detailed diagram showing the x and y components of a given force this is often helpful when solving a problem using newtons first or second law. It is a simplification of the picture that shows just the forces. Drawing a force diagram.

In the example below the first image is a picture of a climber on the side of a cliff. Drawing the normal force on an free body diagram. The floor exerts a normal force upwards against the shoe while the show exerts a normal force down against the floor.

An example of a free body diagram is shown at the right. The second image shows just. A force diagram is simply a diagram showing all the forces acting on an object the forces direction and its magnitude.

Draw and label a free body diagram of the trailer. The location and orientation of the vectors will be graded. What is a free body diagram and how to draw it with examples in this article you will learn what a free body diagram or fbd is and how to draw it in 3 simple steps.

At this support a force acts on the system. The size of the arrow in a free body diagram is reflective of the magnitude of the force. In this case place a squiggly line through the original vector to show that it is no longer in playit has been replaced by its x and y components.

A free body diagram is a representation of an object with all the forces that act on it. A free body diagram is a special example of the vector diagrams. The direction of the arrow reveals the direction in which the force acts.

These diagrams will be used throughout your study of physics. The length of the vectors will not be graded. Draw the vectors starting at the black dots.

In order to have normal force you must have a contact surface touching something.
